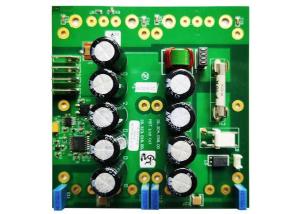

FR4 LED PCB Assembly

Name: FR4 LED PCB Assembly
Brand: ABIS
Price: 1 USD

Brand Name : ABIS

Model Number : PP-3

Certification : UL, ISO9001,ISO14001,SGS,RoHS, TS16949

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 60,000 s.q.m/month

Delivery Time : 0.5-4 week

Packaging Details : Vacuum packing

PCB substrate : FR4 standard

Layers : 2 layer

Surface finish : ENIG,HAL-LF

Copper thickness : 2OZ

Application : LED lighting

Solder mask : Green LPI

Special process : Conformal coating

Board thickness : 1.68mm

Contact Now

Prototype Circuit Board LED PCB Assembly For Lighting Control

1. FR4 standard PCB.

2. Applied to LED lighting.

3. Immersion gold, HAL-LF surface coating.

4. 2OZ cu weight.

5. 1.68mm board thick.

FR4 LED PCB Assembly

1	Layers	2 layer
2	PCB material	FR4 TG130-140
3	PCB thickness	1.68mm
4	Usage	LED lighting
5	Surface coating	HAL lead free,ENIG 2u''
6	Min holes	0.21mm
7	Mini chip part	0201 footprint
8	Min line copper	0.28mm
9	Min gap	0.28mm
10	Cu weight	70um
11	Solder mask	Green LPISM
12	Special processing	Conformal coating
13	Overlay	White
14	Certification	RoHS compliant,UL,SGS,ISO9001/14001,TS16949
15	Min BGA pitch	0.2mm

FAQ

Q1:How long production for LED PCB assembly?
A: Kindly we have 10+years experience for PCB manufacturing.

Q2:What are the minimum edge rails?
A: 5mm in each long side.

Q3:How to ensure the board quality?
A: Electronic test and function test passed before delivery.

Q4: What is the minimum length of tape with components?
A: Min 0201 footprint .

Q5: What is the required stock of components?
A: The MOQ for capacitor and resistor is 4K pcs,However 1PCS sample available.

Q6: Are there any requirements for fiducial marks?
A: Yes fiducial marks required for automatic assembly.Moreover we require a stencil to do so.
